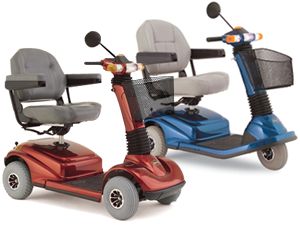

Celebrity Features

• Contoured seating with adjustable back angle, flip-up height adjustable armrests,
  sliding and pneumatic seat
• Full directional lighting package (includes head, tail and running lights)
• Whisper-quiet drivetrain system All controls at your finger tips (lighted soft-touch control panel)
• Infinitely adjustable tiller with auto-leveling console allows the digital console, headlight,
  and mirror to remain level
• Audible back-up warning signal (indicator may be disengaged)
• Full front and rear "soft ride suspension" (for a smooth and comfortable ride)
• Stylish contemporary designs
• 10” rear / 9” front tires for increased ground clearance

Celebrity 3 Wheel Specifications  •  Celebrity 4Whl Specifications

Overall Length 50" or 51.75" Overall Width 24"

Per-charge Range* (Max) up to 25 - 30 Mi. (varies w/ passenger weight)

Maximum Speed Variable up to 5.25 MPH Turning Radius 48" or 59"

Total weight, incl batteries* 212.5 lbs. or 228.5 lbs. Weight w/o Batteries 147.5 lbs. or 163.5 lbs.

Wheels Front 3" x 10 Rear 4" x 10" Front Ground Clearance 3.5"

Battery (typical installation) (2) 12V deep cycle (AGM or gel cell)Size: 40 AH (2)

Battery (optional sizes) (2) 12V U-1 (31 to 36 AH)Drive Train Sealed transaxle

Battery Weight* 40 AH- 32.5 lbs. ea, U-1- approx. 24.5 lbs.

Battery Charger On board 3A Weight Capacity 350 lbs.

Seat type (standard) Deluxe Contoured Medium-back with sliders, pneumatic height adj.

Standard Seat Weight 32.5 lbs. Standard Seat Width 18" Standard Seat Depth 16" usable

Body colors Red, Blue

Heaviest Piece Weight 64 lbs.(rear section)

Disassembly 7 easy-to-transport pieces *With battery size typically shipped on new units

Note: Turning radius derived in accordance with ANSI/RESNA methodology
